PEC-42-500M40G-20-12-292MM Active

Ultra-Wideband Low Noise Amplifier

Product Feature

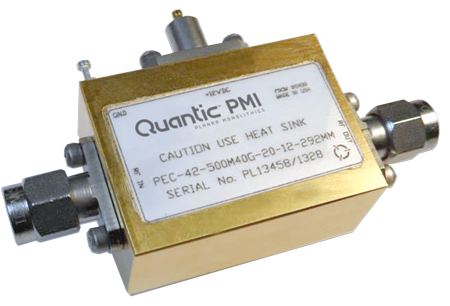

Quantic PMI Amplifier Model PEC-42-500M40G-20-12-292MM is a 0.5 to 40 GHz Ultra-Wideband Low Noise Amplifier that provides typically 42 dB of gain with a noise figure of 5.5 dB at 20 GHz. The OP1dB is 19 dBm (1 to 18 GHz) and 17 dBm (18 to 40 GHz). The maximum input power rating is 17 dBm CW and the operating DC supply is 450 mA at +12 to +15 VDC. This unit is supplied in a package measuring 1.37” x 1.0” x 0.6” with 2.92mm male connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 40
Frequency Min (GHz): 0.5
Frequency Max (GHz): 40
Gain (dB): 42 dB Typ
Gain (Measured): 42 dB Typ - Measured 40 dB
Gain Flatness: ±2.5 dB Typ
Gain Flatness (Measured): ±2.5 dB Typ - Measured ±2.633 dB
Noise Figure (dB): 5.5 dB Typ (Up to 26.5 GHz)
OP1dB (dBm): 19 dBm (1 to 18 GHz) Typ,
17 dBm (18 to 40 GHz) Typ
Psat (dBm): 23 dBm (1 to18 GHz) Typ,
20 dBm (18 to 40 GHz) Typ
VSWR In/Out: 2.0:1 / 2.5:1 Max, Measured 1.85:1 / 2.32:1
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 450 mA Typ
Input Power: 17 dBm CW Max
Connectors: 2.92mm Male
Size: 1.37" x 1.0" x 0.6"
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +117 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
