PEC-42-500M40G-20-12-292MF-BG Active

Low Noise Amplifier

Product Feature

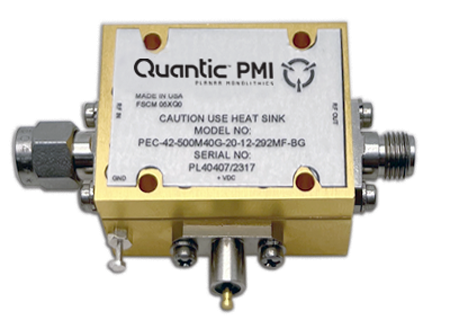

Quantic PMI Model PEC-42-500M40G-20-12-292MF-BG is a 0.5 to 40 GHz low noise amplifier that has a typical gain of 42 dB while maintaining a ±2.5 dB flatness, a noise figure of 5.5 dB, an OP1dB of 17 dBm @ 40 GHz, a Psat of 22 dBm @ 40 GHz, an input power handling of 17 dBm, and a VSWR of 1.94:1.   This small package measures 1.37" x 1.0" x 0.6"  and has 2.92mm Male/Female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 40
Frequency Min (GHz): 0.5
Frequency Max (GHz): 40
Gain (dB): 40 dB Typ
Minimum Gain: 36 dB Min
Gain Flatness: ±2.5 dB Typ
Noise Figure (dB): 5.5 dB Typ (Up to 26.5 GHz)
OP1dB (dBm): 19 dBm Typ (1 to 18 GHz),
17 dBm Typ (18 to 40 GHz)
Psat (dBm): 23 dBm Typ (1 to 18 GHz),
20 dBm Typ (18 to 40 GHz)
VSWR In/Out: 2.0:1 / 2.5:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 450 mA Nom
Input Power: +17 dBm CW Max
Connectors: Input: 2.92mm Male,
Output: 2.92mm Female
Size: 1.37" x 1.00" x 0.60"
Finish: Gold Plated
DC Supply: +12 to +15 VDC @ 450 mA Nom
Environmental Ratings:
Temperature: -55 °C to +85 °C Operating
-65 °C to +117 °C Storage
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
