PEC-37-9G10G-3R0-27-SFF
Active
Low Noise Amplifier

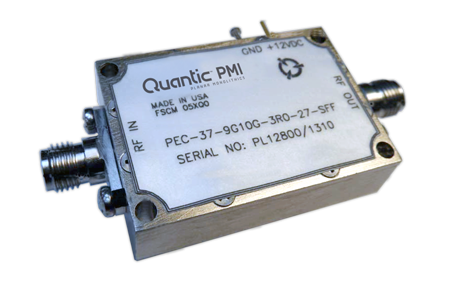

Quantic PMI Model PEC-37-9G10G-3R0-27-SFF is a Low Noise Amplifier that operates over the 9 to 10 GHz frequency range. This model provides 28 dB of gain typically and offers a low noise figure of 3 dB maximum. The amplifier provides an OP1dB is 27 dBm minimum and operates on 10 to +15 VDC with 400 mA of typical current draw. This amplifier is supplied in a housing measuring 1.5" x 1.0" x 0.4" with SMA Female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 9 to 10 |
|---|
| Frequency Min (GHz): | 9 |
|---|
| Frequency Max (GHz): | 10 |
|---|
| Gain (dB): | 34 dB Min,
40 dB Max |
|---|
| Gain Flatness (dB): | ±0.35 dB Typ, ±0.5 dB Max |
|---|
| Noise Figure (dB): | 2.5 dB Typ, 3 dB Max |
|---|
| VSWR In/Out: | 1.7:1 Typ, 2.0:1 |
|---|
| OP1dB (dBm): | 27 dBm Min, 28 dBm Typ |
|---|
| OIP3: | +31 dBm Typ |
|---|
| DC Voltage: | 10 VDC /+12 VDC / +15 VDC |
|---|
| DC Current Draw: | 300 mA Min / 400 mA Typ / 700 mA Max |
|---|
| Spurious: | -60 dBc Max |
|---|
| Gain Variation Over Temperature: | ±2 dB Typ |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.5" x 1.0" x 0.4" |
|---|
| Finish: | Nickel Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -20 ºC to +65 ºC |
|---|
| Temperature (Non-Operating): | -45 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
