PEC-30-7D5G18G-4R0-20-12-SFF Preliminary

Low Noise Amplifier

Product Feature

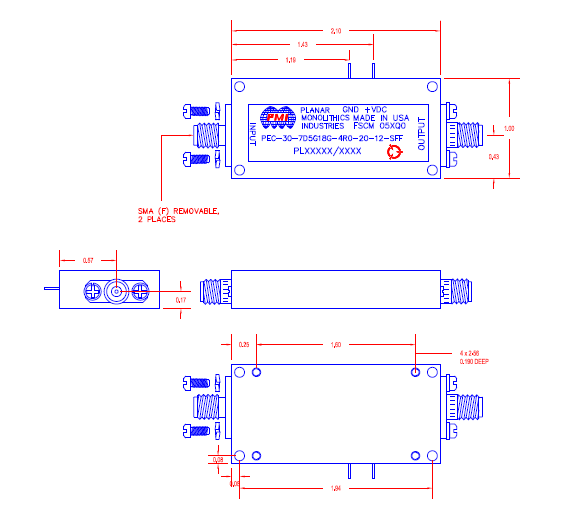

Quantic PMI Model PEC-30-7D5G18G-4R0-20-12-SFF is a 7.5 to 18 GHz low noise amplifier that offers a gain of 29 to 32 dB with a typical gain flatness of ±2 dB, a typical OP1dB of 20 dBm. Housing size is 2.1" x 1.0" x 0.34" with SMA Female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 7.5 to 18
Frequency Min (GHz): 7.5
Frequency Max (GHz): 18
Gain (dB): 29 to 32 dB Typ
Gain Flatness: ±2 dB Max
Noise Figure (dB): 4 dB Max
Noise Figure (Measured): 4 dB Max
OP1dB (dBm): 20 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 VDC
DC Current (mA): 500 mA Max
OIP3: 28 dBm Min
Connectors: SMA Female - removable
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
