PEC-28-10M3G-1R9-13-12-SFF
Preliminary
Low Noise Amplifier
Quantic PMI Model PEC-28-10M3G-1R9-13-12-SFF is a 0.01 to 3 GHz, Low Noise Amplifier. It offers typical small signal gain of 30 dB a maximum noise figure of 1.9 dB and a typical P1dB of 13 dBm. This amplifier is supplied with SMA female connectors in a housing measuring 1.5" x 0.85" x 0.375"
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 01 to 3 |
|---|
| Frequency Min (GHz): | 0.01 |
|---|
| Frequency Max (GHz): | 3 |
|---|
| Gain (dB): | 30 dB Typ |
|---|
| Gain (dB) - Measured: | 28 dB Min, 30 dB Typ, 32 dB Max |
|---|
| Gain Flatness (dB): | ±0.75 dB Typ,
±1 dB Max |
|---|
| Noise Figure (dB): | 1.6 dB Typ, 1.9 dB Max |
|---|
| Input VSWR: | 1.5:1 Typ, 1.8:1 Max |
|---|
| Output VSWR: | 1.7:1 Typ, 2.0:1 |
|---|
| OP1dB (dBm): | 10 dBm Min, 13 dBm Typ |
|---|
| OIP3: | 20 dBm Min, 23 dBm Typ |
|---|
| RF Input Power: | 10 dBm Max |
|---|
| Reverse Isolation: | 40 dB Min, 50 dB Typ |
|---|
| DC Voltage: | +12 to +15 VDC |
|---|
| DC Current Draw: | 120 mA Max |
|---|
| Spurious: | -60 dBc Typ |
|---|
| Gain Variation Over Temperature: | ±1.25 dB typ |
|---|
| Connectors: | SMA Female |
|---|

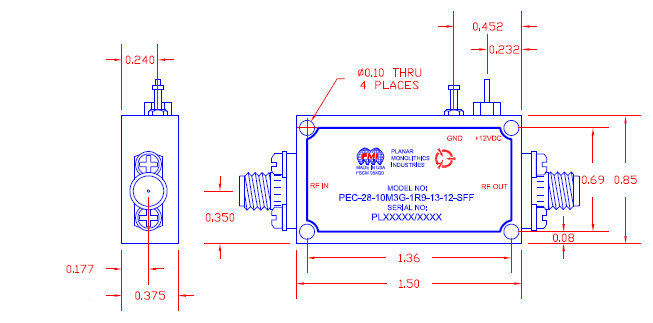

| Size: | 1.5" x 0.85" x 0.375" |
|---|
| Finish: | Painted Blue, Note: Mounting surface to be free of paint |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +75 ºC |
|---|
| Temperature (Non-Operating): | -55 ºC to 85 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
