PEC-20-218-16-15-SFF-TTLVG Active

Variable Gain Low Noise Amplifier

Product Feature

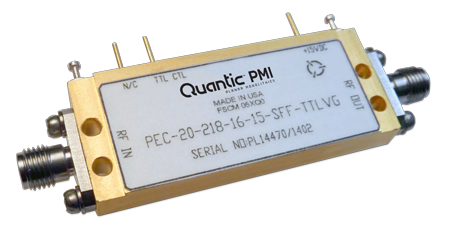

Quantic PMI Model PEC-20-218-16-15-SFF-TTLVG is a variable gain low noise amplifier that operates over the 2 to 18 GHz frequency range. This model provides two gain states of 20 dB in the "on" state and less than 0 dB in the "off" state. The noise figure is 7 dB maximum and the OP1dB is 16 dBm typically and gain is controlled via a single TTL line and the speed to switch between gain states is <2 µs. This model is supplied in a housing measuring 1.92" x 0.78" x 0.26" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 20 dB Min
Gain Flatness (dB): ±1.5 dB Max
Noise Figure (dB): 7 dB Max
OP1dB (dBm): 15 dBm Min, 16 dBm Typ
VSWR In/Out: 2:1 Max
DC Voltage Supply (VDC): +15 VDC
DC Current Draw: 400 mA
Switching Speed: 2 µs
Connectors: SMA Female
Size: 1.92" x 0.78" x 0.26"
Finish: Gold Plated
Environmental Ratings:
Temperature: -54 ºC to +95 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
