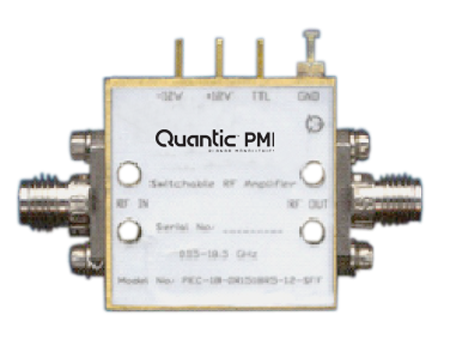

PEC-18-1416-20LM-15-SFF-TTLVG
Active
High-Isolation - Fast Switching - Limiting Amplifier
Quantic PMI Model PEC-18-1416-20LM-15-SFF-TTLVG amplifier operates over the 14.0 to 16.0 frequency band that provides a limited RF output and has a ON / OFF blanking feature. A TTL signal can select isolation (blanking) mode which provides greater than 60 dB of attenuation. The attenuation switching speed is less than 10 ns.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 14.0 - 16.0 GHz |
|---|
| Frequency Min: | 14.0 GHz |
|---|
| Frequency Max: | 16.0 GHz |
|---|
| Input Power: | 3 to 7 dBm |
|---|
| Gain: | 18 dB @ TTL "0",
< -40 dB @ TTL "1" |
|---|
| Gain Flatness: | ±1.5 dB |
|---|
| Noise Figure: | 6.5 dB |
|---|
| OP1dB: | 20 ± 1 dBm |
|---|
| DC Power Supply: | +12 to +15 VDC |
|---|
| Output Power Flatness: | ± 0.5 dBm @ Pin-3 dBm |
|---|
| DC Voltage Supply: | +12 to +15 VDC |
|---|
| DC Current Draw: | 380 mA |
|---|
| Switching Speed: | (Delay On + Ride Time): < 10 ns
(Delay Off + Fall Time): < 10 ns |
|---|
| RF Output Harmonic Level: | -20 dBc |
|---|
| RF Switch Attenuation Range: | -60 dB Min |
|---|
| RF Maximum Pulse Width: | 50 ns |
|---|
| RF Maximum Pulse Repetition Rate: | >1 MHz |
|---|
| Environmental Ratings: |
|---|
| Temperature: | 50 °C to +100 °C Operating |
|---|
