PE2-60-1R018R0-4R5-22-12-SFF Active

Low Noise Amplifier

Product Feature

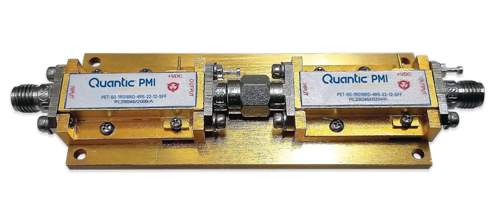

Quantic PMI Model PE2-60-1R018R0-4R5-22-12-SFF is a low noise amplifier that operates over the 1 to 18 GHz frequency range and is designed for military and industrial applications that offers a gain of 60 dB and a gain flatness of ±3 dB with a noise figure of 4.5 dB and a OP1dB of 22 dBm.  Overall package size is 2.292" x 1.20" x 0.39" with the individual amplifiers supplied in a standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 18
Frequency Min (GHz): 1
Frequency Max (GHz): 18
Gain (dB): 60 dB Typ
Gain Flatness: ±3 dB Max
Noise Figure (dB): 4.5 dB Typ
OP1dB (dBm): 22 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 630 mA Max
Connectors: SMA Female - removable
Size: 2.797" x 1.120" x 0.390"
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -20 ºC to +70 ºC Operating,
-55 ºC to +85 ºC Available,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
