PE2-34-1R251R75-12-SFF-1
Active
Temperature Compensated, Low Noise Amplifier

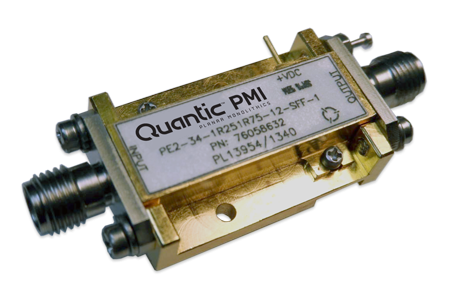

Quantic PMI Model PE2-34-1R251R75-12-SFF-1 is a 1.25 to 1.75 GHz, Temperature Compensated, Low Noise Amplifier with 34 dB of gain with a typical gain flatness of ±0.25 dB. The noise figure is typically 4.98 dB and offers a minimum OP1dB of 0 dBm. The amplifier requires +7 to +12 VDC and the current draw is 198 mA typical. The unit is supplied with removable SMA Female connectors in our standard PE2 housing.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 1.25 to 1.75 |
|---|
| Frequency Min (GHz): | 1.25 |
|---|
| Frequency Max (GHz): | 1.75 |
|---|
| Gain (dB): | 34 dB Min |
|---|
| Gain Flatness (dB): | ±0.25 dB Typ, ±1.5 dB Max |
|---|
| Noise Figure (dB): | 4.98 dB Typ, 8 dB Max |
|---|
| VSWR In/Out: | 1.15:1 Typ, 2.0:1 |
|---|
| OP1dB (dBm): | 0 dBm Min |
|---|
| RF Input Power: | 10 dBm CW Max |
|---|
| DC Voltage: | +7 to +12 VDC |
|---|
| DC Current Draw: | 200 mA Max @ 10 dBm CW Input |
|---|
| Connectors: | SMA Female - removable |
|---|
| Size: | 1.08" x 0.71" x 0.32" |
|---|
| Housing: | PE2 |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -54 ºC to +95 ºC |
|---|
| Temperature (Non-Operating): | -62 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 214A Cond. H |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. C |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107G |
|---|
