PE2-30-2R020R0-5R0-22-12-SFF Active

Low Noise Amplifier

Product Feature

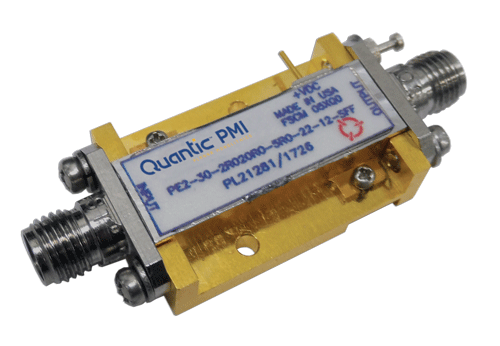

Quantic PMI Model PE2-30-2R020R0-5R0-22-12-SFF is a 2 to 20 GHz low noise amplifier that offers a gain of 30 dB and a gain flatness of ±1.5 dB with a noise figure of 5 dB and a OP1dB of 20 dBm.  Supplied in a standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 20
Frequency Min (GHz): 2
Frequency Max (GHz): 20
Gain (dB): 30 dB Typ
Gain (Measured): 30 dB Typ - Measured 25.2 dB
Gain Flatness: ±1.5 dB Max
Gain Flatness (Measured): ±1.5 dB Max - Measured ±1.39 dB
Noise Figure (dB): 5 dB Typ
Noise Figure (Measured): 5 dB Typ - Measured 3.97 dB
OP1dB (dBm): 20 dBm Min
VSWR In/Out: 2.0:1 Max - Measured 2.6:1
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 450 mA Max - Measured 441 mA
Connectors: SMA Female - removable
Size: 1.08" x 0.71" x 0.29", *Excluding Connectors*
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating,
-40 ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
