PE2-30-12-1R35-10-12-SFF-BT Active

Low Noise Amplifier

PE2-30-12-1R35-10-12-SFF-BT
Product Feature

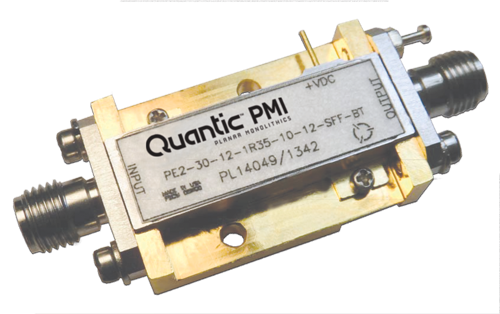

Quantic PMI Model PE2-30-12-1R35-10-12-SFF-BT is a 1 to 2 GHz low noise amplifier that provides 31 dB of gain with a low noise figure of 1.35 dB maximum. This model features an integrated Bias-T on the output. Supplied in our standard PE2 housing that can be used as a SMA connectorized unit or as a surface mount component and is hermetically sealed.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 2
Frequency Min (GHz): 1
Frequency Max (GHz): 2
Gain (dB): 31 dB Typ
Gain Flatness (dB): ±1.5 dB Max
Noise Figure (dB): 1.35 dB Max
VSWR In/Out: 2.0:1
OP1dB (dBm): 10 dBm Min
DC Voltage: +12 to +15 VDC
DC Current Draw: 140 mA Max
Connectors: SMA Female - removable
Size: 1.08" x 0.71" x 0.32"
Housing: PE2
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to 85 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
