PE2-30-0R56R0-5R0-22-12-SFF Active

Low Noise Amplifier

Product Feature

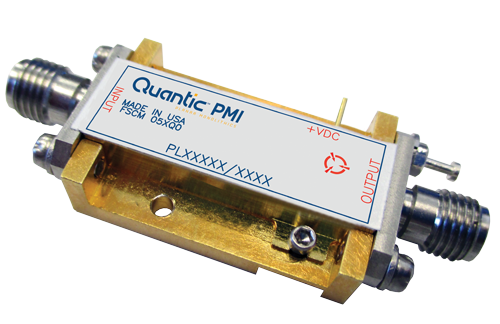

Quantic PMI Model PE2-30-0R56R0-5R0-22-12-SFF is a 0.5 to 6 GHz low noise amplifier that typically provides 30 dB of gain with a gain flatness is ±1.0dB maximum and a noise figure is 5 dB typical. This amplifier provides a minimum OP1dB of 21 dBm with a VSWR is 2.0:1 maximum into 50 ohms impedance and operates on a single DC supply of +12 to +15 VDC with 325 mA nominal current consumption. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 6
Frequency Min (GHz): 0.5
Frequency Max (GHz): 6
Gain (dB): 30 dB Typ
Gain (Measured): 30 dB Typ - Measured 30 dB
Gain Flatness: ±1.0 dB Max - Measured ±0.39 dB
Noise Figure (dB): 5 dB Typ
Noise Figure (Measured): 5.0 dB Typ - Measured 4.24 dB
OP1dB (dBm): 22 dBm Typ, 21 dBm Min
VSWR In/Out: 2.0:1 Max - Measured 1.42:1/1.95:1
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 325 mA nominal - Measured 292 mA
Connectors: SMA Female - removable
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
