PE2-30-0R2520R0-5R0-22-12-SFF Active

Low Noise Amplifier

Product Feature
Additional Documents

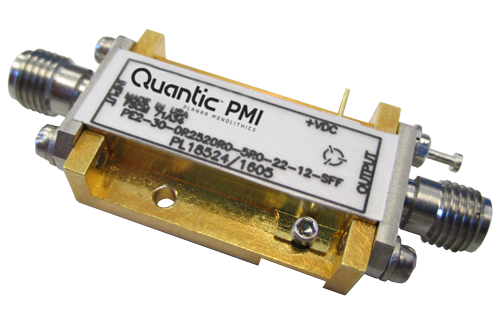

Quantic PMI Model PE2-30-0R2520R0-5R0-22-12-SFF is a 0.25 to 20 GHz, low noise amplifier designed for military and industrial applications that provides 30 dB of gain with a gain flatness of ±1.5 dB, a noise figure of 5 dB and OP1dB of 22 dBm.  The amplifier uses standard PE2 housing (1.08” x 0.71” x 0.32”) and has removable SMA (F) connectors for 2-IN-1 Dual Use connectorized or surface mount applications.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.25 to 20
Frequency Min (GHz): 0.25
Frequency Max (GHz): 20
Gain (dB): 30 dB Typ
Gain (Measured): 30 dB Typ - Measured 26.2 dB
Gain Flatness: ±1.5 dB Max
Gain Flatness (Measured): ±1.5 dB Max - Measured ±1.36 dB
Noise Figure (dB): 5 dB Typ
OP1dB (dBm): 22 dBm Min
VSWR In/Out: 2.0:1 Max - Measured 1.84:1 / 1.88:1
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 325 mA Max - Measured 400 mA
Connectors: SMA Female - removable
Housing: PE2
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating,
-40 ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
