PE2-28-20R040R0-5R5-18-12-SFF Active

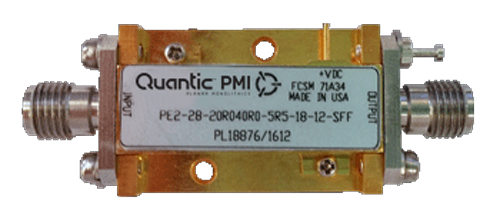

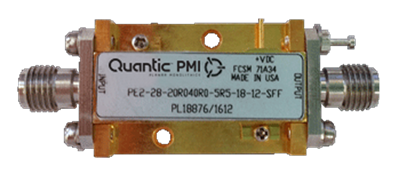

PMI Model No. PE2-28-20R040R0-5R5-18-12-SFF is a 20 to 40 GHz low noise amplifier that typically provides 28 dB of gain. The gain flatness is ±2.5 dB maximum and ±1.5 dB typical with a noise figure is 5.5 dB typical. This amplifier provides a minimum OP1d

Product Specifications

General Parameters:
Status: Active
Frequency Range: 20.0 to 40.0 GHz
Frequency Min: 20 GHz
Frequency Max: 40 GHz
Gain: 28 dB typ.
Gain (Measured): 28 dB typ. - Measured 24.18 dB
Gain Flatness: ±2.5 dB max.
Gain Flatness (Measured): ±2.5 dB max. - Measured ±1.48 dB
Noise Figure: 5.5 dB typ. - Measured 3.42 dB
VSWR In/Out: 2.3:1 typ. - Measured 1.75:1/1.97:1(In/Out)
DC Voltage Supply: +12 to +15 VDC
DC Current Draw: 350 mA nominal - Measured 237 mA
OP1dB: +18 dBm typ., +15 dBm min., Measured 15.2 dBm
RF Connectors: 2.92 mm (F) - Field Removable
Finish: Gold Plated
Housing: PE2
Environmental Ratings:
Temperature: -54 ºC to +95 ºC Operating
Non-Operating: -65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
