PE2-26-2G18G-5-21-12-SFF-DP Active

Low Noise Amplifier

Product Feature
Additional Documents

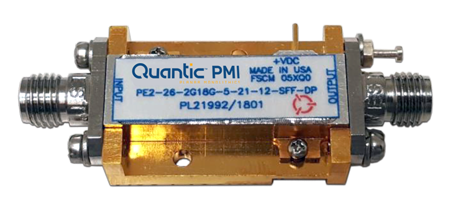

Quantic PMI Model PE2-26-2G18G-5-21-12-SFF-DP is a low noise amplifier designed for military and industrial applications that operates 2 to 18 GHz frequency range with a gain of 26 dB and a gain flatness of ±1.5 dB with a noise figure of 5 dB.  This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 26 dB
Gain (Measured): 26 dB - Measured 25.5 dB
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 5 dB Max
Noise Figure (Measured): 5 dB Max - Measured 4.413 dB
OP1dB (dBm): 21 dBm Min, 25 dBm Goal
VSWR In/Out: Input: 2.0:1 Max
Output: 2:0:1 (2 to 15 GHz), 2.8:1 Max (15 to 18 GHz)
DC Voltage (VDC): +11 to +12.5 VDC
DC Current (mA): 400 mA goal, 450 mA Max
1 dB Gain Compression Point: 21 dBm Min, 25 dBm Goal - Measured 23.2 dB
OIP3: 30 dBm Min
Connectors: SMA Female - removable
Size: 1.08" x 0.71" x 0.29"
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-55 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B (96H at 95% R.H.)
Shock: MIL-STD-202F, Method 213B Cond. J (30G, 11 ms)
Vibration: MIL-STD-202F, Method 204D Cond. B (0.06" Double Amplitude or 15G, which ever is less)
Altitude: MIL-STD-202F, Method 105C Cond. B (50, 000 ft.)
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A (5 Cycles)
