PE2-25-8G10G-2R0-15-12-SFF Active

Low Noise Amplifier

PE2-25-8G10G-2R0-15-12-SFF
Product Feature

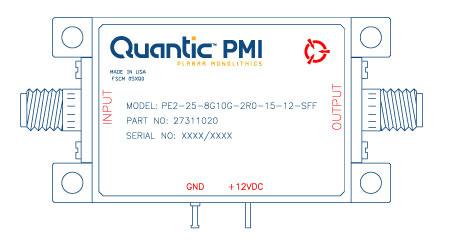

Quantic PMI Model PE2-25-8G10G-2R0-15-12-SFF is a low noise amplifier which operates over the 8.5 to 9.6 GHz frequency range that provides 25 dB of gain and offers an OP1dB of 8 dBm with a noise figure is <2 dB. Housing size is 2" x 1.1" x 0.59" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 8.5
Frequency Max (GHz): 9.6
Gain (dB): 25 ±1 dB
Gain Flatness (dB): ±1 dB Max
Noise Figure (dB): 2 dB Max
VSWR In/Out: 1.8:1 Max
OP1dB (dBm): 8 ± 1 dBm
DC Voltage: +12 VDC ±5%
DC Current Draw: 120 mA Typ
Impedance: 50 ±2 Ω
Input Power: 16 dBm CW Max
Connectors: SMA Female
Size: 2" x 1.1" x 0.59"
Finish: AluMinum 6061 - T6
Gold Plating - No Paint
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -10 °C to +70 °C
Temperature (Non-Operating): -25 °C to +125 °C
