PE2-22-0R52R0-1R5-18-12-SFF Active

Low Noise Amplifier

Product Feature

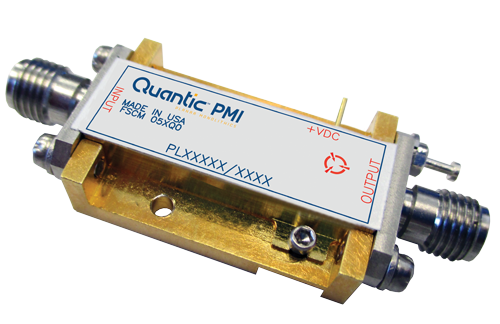

Quantic PMI Model PE2-22-0R52R0-1R5-18-12-SFF is a 0.5 to 2 GHz Low Noise Amplifier that provides 22 dB of gain while maintaining a maximum gain flatness of ±0.5 dB maximum over the operating frequency with a noise figure of 1.5 dB and offers an OP1dB of 18 dBm minimum. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 2
Frequency Min (GHz): 0.5
Frequency Max (GHz): 2
Gain (dB): 22 dB Typ
Gain (Measured): 22 dB Typ - Measured 19.1 Min, 19, 6 Max
Gain Flatness: ±0.5 dB Max
Noise Figure (dB): 1.5 dB Typ
Noise Figure (Measured): 1.5 dB Typ - Measured 1.67 dB
OP1dB (dBm): 18 dBm Min
VSWR In/Out: 2.3:1 Max - Merasured 1.5:1 (Input), 1.1:1 (Output)
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 100 mA Max - Measured 87 mA
Connectors: SMA Female - removable
Housing: PE2
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating,
-40 ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
