PE2-16-2R06R0-1R8-12-12-SFF Active

Low Noise Amplifier

Product Feature

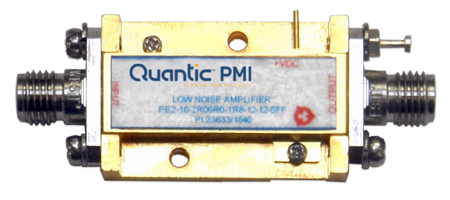

Quantic PMI Model PE2-16-2R06R0-1R8-12-12-SFF is a low noise amplifier that operates over the frequency range of 2 to 6 GHz is designed for military and industrial applications that provides a gain of 16 dB and a gain flatness of ±1.5 dB with a noise figure of 2 dB.  This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 6
Frequency Min (GHz): 2
Frequency Max (GHz): 6
Gain (dB): 16 dB Typ
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 2 dB Max
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 65 mA Max
Connectors: SMA Female - removable
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature (Operating): -20 °C to +70 °C
Temperature (Storage): -55 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
