PE2-15-5R06R0-3R5-21-12-SFF Active

Low Noise Amplifier

PE2-15-5R06R0-3R5-21-12-SFF
Product Feature

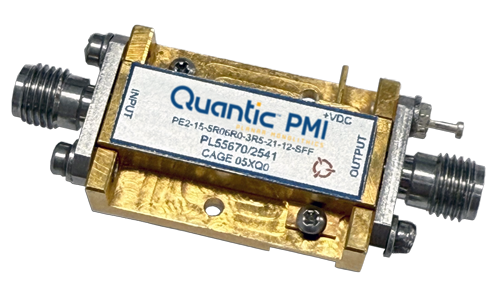

Quantic PMI Model PE2-15-5R06R0-3R5-21-12-SFF is a 5 to 6 GHz Low Noise Amplifier designed for military and industrial applications. This model provides 15 dB of gain and 19 dBm P1dB while maintaining a maximum gain flatness of ±0.5 dB and a typical noise figure of 3.5 dB. Supplied in our PE2 housing and can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 5 to 6
Frequency Min (GHz): 5
Frequency Max (GHz): 6
Gain (dB): 15 dB Typ
Gain Flatness (dB): ±0.5 dB Max
Noise Figure (dB): 3.5 dB Typ
VSWR In/Out: 2.0:1 Max
OP1dB (dBm): 19 dBm Min
RF Input Power: 23 dBm Max
DC Voltage: +12 to +15 VDC
DC Current Draw: 225 mA Max
Connectors: SMA Female - Removable
Size: 1.08" x 0.71" x 0.29"
Housing: PE2
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to 85 ºC
Temperature (Non-Operating): -55 ºC to 125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
