| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 30 |
|---|
| Frequency Stability: | Same as Reference |
|---|
| Load VSWR: | 1.5:1 |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | -75 dBc Max |
|---|
| Phase Noise: | -74 dBc/Hz @ 100 Hz Max
-89 dBc/Hz @ 1 kHz Max
-99 dBc/Hz @ 10 kHz Max
-99 dBc/Hz @ 100 kHz Max
120 dBc/Hz @ 1 MHz Max |
|---|
| Harmonics: | -10 dBc Goal |
|---|
| Reference Phase Noise (SSB): | -137 dBc/Hz @ 10 Hz Max
-162 dBc/Hz @ 100 Hz Max
-172 dBc/Hz @ 1 kHz Max
-174 dBc/Hz @ 10 kHz Max |
|---|
| Reference Frequency: | 10 MHz |
|---|
| Output Level: | 13 dBm Min |
|---|
| Lock Detector: | TTL High - Lock |
|---|
| Input Level: | 3 to 10 dBm |
|---|
| DC Current: | 550 mA Max |
|---|
| Supply Voltage: | +12 VDC ± 10% |
|---|
| Connectors: | RF OUT: 2.92mm (K) Female
REF IN: SMA Female
POWER: Thru Capacitance |
|---|

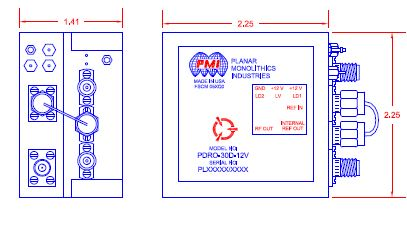

| Size: | 2.25” x 2.25” x 1.41” |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +85 °C |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
