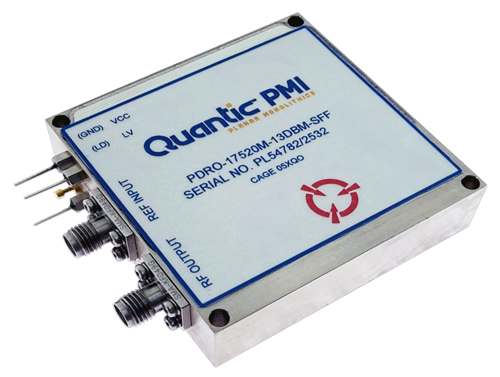

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency (fo): | 17.52 GHz |
|---|
| Frequency Stability: | Same as Reference |
|---|
| Load VSWR: | 1:1.5 |
|---|
| Output Power: | +13 dBm Min |
|---|
| Spurious: | -70 dBc Max |
|---|
| Phase Noise: | -80 dBc/Hz@ 100 Hz Max
-101 dBc/Hz@ 1 kHz Max
-108 dBc/Hz@ 10 kHz Max
-108 dBc/Hz@ 100 kHz Max
-130 dBc/Hz@ 1 MHz Max |
|---|
| Harmonics: | -20 dBc Max (Design to meet, not test) |
|---|
| Sub Harmonics: | -60 dBc Max |
|---|
| Reference Phase Noise (SSB): | 2.25" x 2.25" x 0.62" |
|---|
| Connectors: | RF Connector: SMA (F)
REF Connector: SMA (F)
Power: Through Cap |
|---|
| Reference Frequency: | 240 MHz (Sinewave) |
|---|
| Supply Voltage: | +12 V +/- 10% |
|---|
| Current: | 300 mA Max |
|---|
| Lock Detector: | TTL HIGH - LOCK |
|---|
| Input Level: | +3 to +13 dBm |
|---|
| Reference Phase Noise: | -130 dBc/Hz@ 100 Hz Max
-150 dBc/Hz@ 1 kHz Max
-160 dBc/Hz@ 10 kHz Max
-160 dBc/Hz @ 100 kHz Max |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +125 °C |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
