PCAN-218-10-SFF-HC Active

Current Controlled Attenuator

PCAN-218-10-SFF-HC
Product Feature
Additional Documents

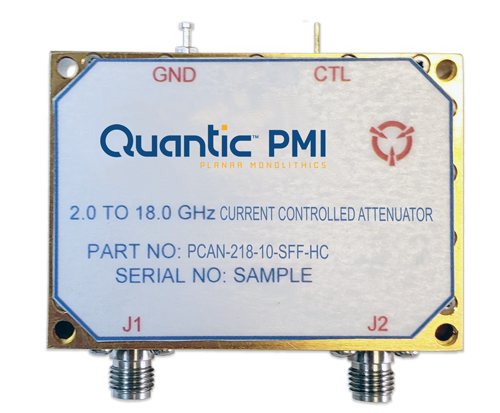

Quantic PMI Model PCAN-218-10-SFF-HC is a Current Controlled Attenuator operating over the 2 to 18 GHz frequency range that provides 10 dB of attenuation with an insertion loss of 5 dB and a attenuation flatness of ±5 dB. This compact housing measures 2.25" x 1.6" x 0.6" and is outfitted with field removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Insertion Loss (dB): 5 dB Max
Attenuation (dB): 10 dB Min
Control Type: Current
Attenuation Flatness (dB): ±5 dB Max
Impedance (Ohms): 50 Ohm
VSWR: 2.0:1 Max, 1.5:1 goal
Power Supply: +0 to 1 VDC @ 20 mA Max
RF Connectors: SMA Female - removable
Size: 2.25" x 1.60" x 0.60"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: Up to 90%, Non-Condensing
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
