PA-2G18G-43-5-40-SFF

High Power Amplifier

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PA_218_67017076_400.jpg
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PA_8G12G_43_5_40_SFF_93083479_400.png
Product Feature

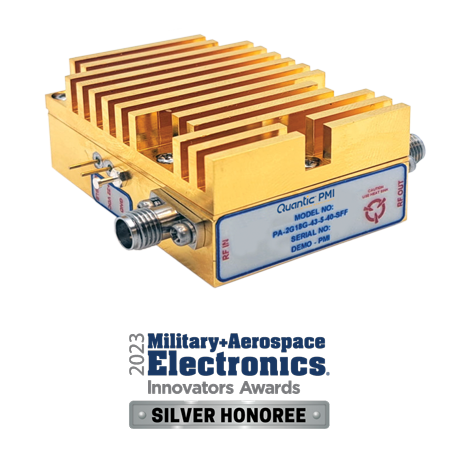

Quantic PMI Model PA-2G18G-43-5-40-SFF is a high-power amplifier with an operating frequency of 2 to 18 GHz offering remarkably high gain of +43 dB Typ/+35 dB Min and saturated output power of 40 dBm (10 W) Typ / 35 dBm Min. Specifications include low noise figure of 3.5 dB Typ: gain flatness of ±3.5 dB Max; and VSWR of 2.5:1. This model has 2.92mm connectors and an ultra-small package of 1.3” x 1.8” x 0.88”.  Optional model PA-2G18G-43-5-40-SFF-HS available with heatsink and 120 Vac fan.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2.0 to 18.0 GHz
Input Power: 20 dBm Max
Saturation Output Power: 40 dBm Typ
35 dBm Min
Gain: 43 dB Typ
38 dB Min
DC Supply Voltage: +22 VDC
RF Connectors In/Out: SMA Female Removable
Finish: Gold Plated
Noise Figure: 3.5 dB Typ
5.0 dB Max
Gain Flatness: ±3.5 dB Max
Size (Excluding Connectors): 1.3” x 1.8” x 0.88"
VSWR: 2.0: 1 Max
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
