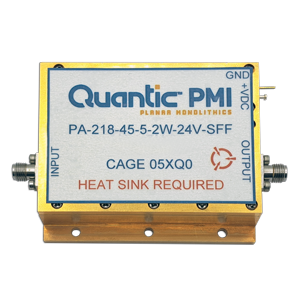

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 2 TO 18 GHz |
|---|
| Saturation Output Power: | 2W MIN @ 0dBm Input Power |
|---|
| Gain: | 45 dB MAX |
|---|
| Input VSWR: | 2.0 : 1 MAX |
|---|
| Output VSWR: | 2.4 : 1 MAX |
|---|
| DC Supply Voltage: | +24V |
|---|
| Current Supply: | 800 mA MAX (NO RF SIGNAL) / 1.5 A MAX (Psat) |
|---|
| Finish: | GOLD PLATED |
|---|
| Noise Figure: | 5 dB MAX |
|---|

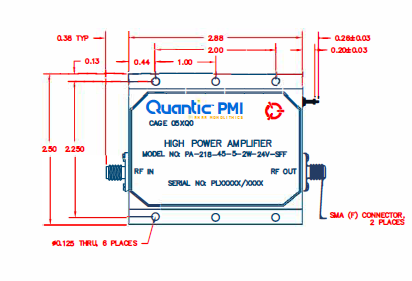

| Size (Excluding Connectors): | 4.95" X 3.38" X 1.00" |
|---|
| DC Connectors: | SMA FEMALE |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 C to +85 C |
|---|
| Non-Operating Temperature: | -65 C to +125 C |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
|---|
