PA-12G18G-53-5-40-SFF Preliminary

High Power Amplifier

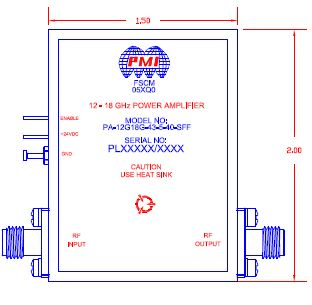

Quantic PMI Model PA-12G18G-53-5-40-SFF is a high power amplifier with operating frequency of 12 to 18 GHz, 53 dB gain and saturated output power of 40 dBm. Package size is 1.50" x 2.00" x 0.50" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min (GHz): 12
Frequency Max (GHz): 18
Gain (dB): 53 dB Min
Psat: 40 dBm Min
Input Power: 20 dBm Max
DC Supply Voltage: +24 VDC
Finish: Gold Plated
Noise Figure: 5 dB Max
Weight: 2.0 oz Max
VSWR: 2.5:1 Max
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
