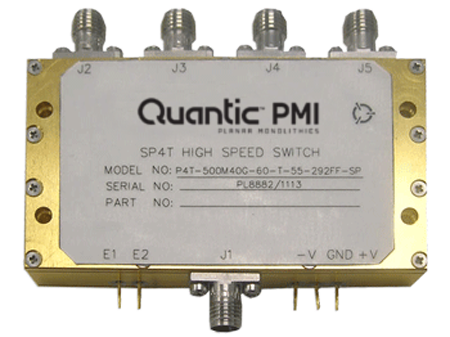

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.5 to 40 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Insertion Loss (dB): | 8 dB Max |
|---|
| Insertion Loss - Typ (dB): | 5.5 dB |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Isolation - Typ (dB): | 60 dB |
|---|
| Switching Speed: | 50 ns Typ |
|---|
| Switching Speed - Typ: | 50 ns |
|---|
| VSWR In/Out: | 2.5:1 Max, 2.0:1 Typ - Measured 1.96:1 |
|---|
| Input Power: | 20 dBm CW Max |
|---|
| Rise/Fall Time: | 15 ns Max |
|---|
| Delay On/Off: | 50 ns Max |
|---|
| Power Supply: | +5 VDC @ 250 mA - Measured 120 mA -5 VDC @ 100 mA - Measured 65 mA |
|---|
| Control Signal: | 2-Bit Decoded TTL |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | 2.92mm Female |
|---|
| Features: | Ultra-Broadband Performance, Low Insertion Loss, High isolation, Fast Switching Speed, Small Size |
|---|
| Size: | 2.72" x 1.5" x 0.4" (Rev A Standard Package),
2.0" x 1.0" x 0.4" (Rev B Compact Package Option) |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
