P4T-500M40G-60-R-55-292FF-SP * Active

SP4T Reflective Switch

Buy Now
P4T-500M40G-60-R-55-292FF-SP *
Product Feature

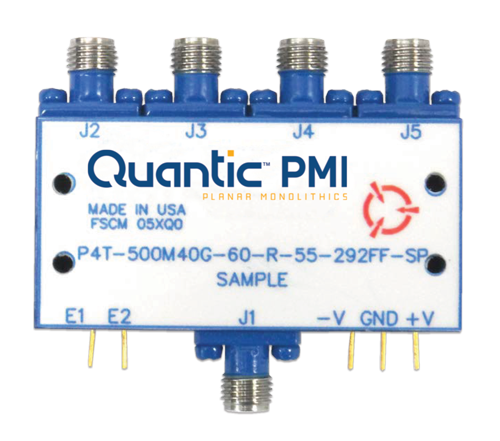

Quantic PMI Model P4T-500M40G-60-R-55-292FF-SP is a reflective, single pole, four throw, pin diode switch that operates over the 0.5 to 40 GHz frequency range and incorporates a TTL compatible driver for easy system integration. Housing measures 2.0" x 1.0" x 0.4" with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP4T
Reflective / Absorptive: Reflective
Frequency (GHz): 0.5 to 40
Frequency Min (GHz): 0.5
Frequency Max (GHz): 40
Insertion Loss (dB): 7.5 dB Max
Insertion Loss - Typ (dB): 5.5 dB
Isolation (dB): 55 dB Min
Isolation - Typ (dB): 55 dB
Switching Speed: 15 ns Max (Rise/Fall),
50 ns Max (Delay On/Off)
Switching Speed - Typ: 50 ns
VSWR In/Out: 2.5:1 Typ - Measured 2.4:1
Input Power: 20 dBm CW Max
Survival Power: 1 W Peak 1 µs
Rise/Fall Time: 15 ns Max
Delay On/Off: 50 ns Max, 50 ns Max
Power Supply: +5 VDC @ 250 mA - Measured 80 mA,
-5 VDC @ 100 mA - Measured 35 mA
Control Signal: 2-Bit Decoded TTL
Power & Control Connector: Solder Pins
Connectors: 2.92mm Female
Size: 2.0" x 1.0" x 0.4"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
