| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 1 to 2 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 2 |
|---|
| Insertion Loss (dB): | 1.2 dB Max |
|---|
| Insertion Loss - Typ (dB): | 1.2 dB |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Isolation - Typ (dB): | 60 dB |
|---|
| Switching Speed: | 100 ns Max |
|---|
| Switching Speed - Typ: | 100 ns |
|---|
| VSWR In/Out: | 1.5:1 Typ |
|---|
| Input Power: | 20 dBm Max |
|---|
| Survival Power: | 30 dBm Max |
|---|
| Impedance: | 50 Ohm |
|---|
| Power Supply: | +5 VDC @ 200 mA Typ
-15 VDC @150 mA Typ |
|---|
| Control Signal: | TTL Logic "0" = Low Loss,
TTL Logic "1" = Isolation,
E1 Controls J1 to J2,
E2 Controls J1 to J3,
E3 Controls J1 to J4,
E4 Controls J1 to J5 |
|---|
| Power & Control Connector: | Solder Pin |
|---|
| Connectors: | SMA Female |
|---|

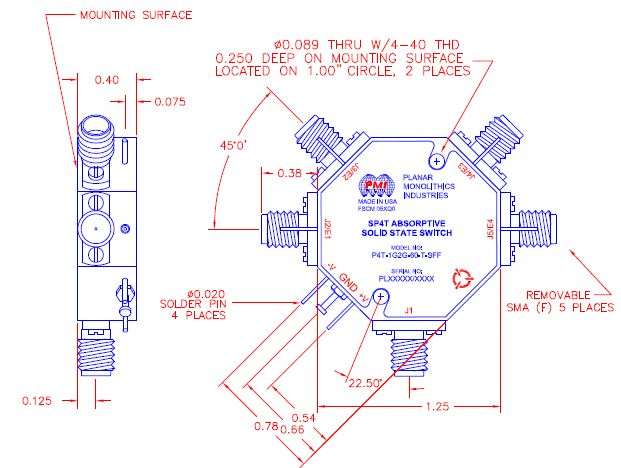

| Size: | 1.25" x 1.25" x 0.4" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
