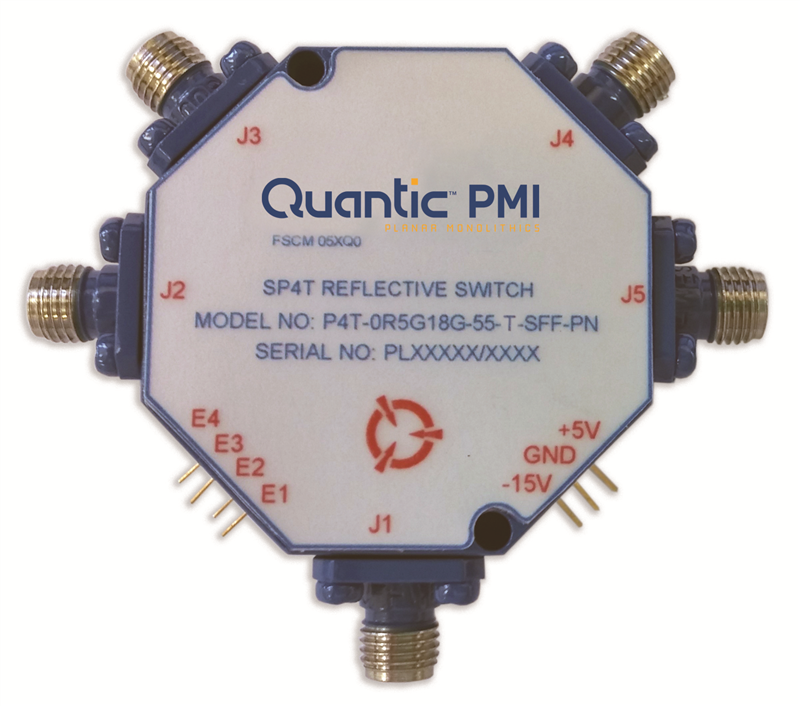

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.5 to 18 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 3.8 dB Max |
|---|
| Insertion Loss - Typ (dB): | 3.8 dB |
|---|
| Isolation (dB): | 55 dB Min |
|---|
| Isolation - Typ (dB): | 55 dB |
|---|
| Switching Speed: | 100 ns Max |
|---|
| Switching Speed - Typ: | 100 ns |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.84:1 |
|---|
| Input Power: | 20 dBm CW Max |
|---|
| Power Supply: | +5 VDC @ 160 mA Nom - Measured 32 mA,
-15 VDC @ 50 mA Nom - Measured 42 mA |
|---|
| Control Signal: | TTL Logic "0" = Low Loss, "1" = Isolation |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.5" x 1.5" x 0.6" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202G, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202G, Method 107G Cond. A |
|---|
