P3T-0R5G18G-55-T-SFF-PN * Active

SP3T Non-reflective Switch

Buy Now
P3T-0R5G18G-55-T-SFF-PN *
Product Feature

Quantic PMI Model P3T-0R5G18G-55-T-SFF-PN is a single pole, three throw, non-reflective switch designed to operate over the 0.5 to 18 GHz frequency range that is designed to maintain low insertion loss, high isolation and fast switching speed. Housing size is 1.2" x 1.2" x 0.5" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP3T
Reflective / Absorptive: Absorptive
Frequency (GHz): 0.5 to 18
Frequency Min (GHz): 0.5
Frequency Max (GHz): 18
Insertion Loss (dB): 3.8 dB Max
Insertion Loss - Typ (dB): 3.8 dB
Isolation (dB): 55 dB Min
Isolation - Typ (dB): 55 dB
Switching Speed: 100 ns Max
Switching Speed - Typ: 100 ns
VSWR In/Out: 2.0:1 Max - Measured 1.84:1
Input Power: 20 dBm CW Max
Control Signal: 3 Bit TTL Logic
Power Supply: +5 VDC @ 120 mA Nom - Measured 22 mA,
-15 VDC @ 50 mA Nom - Measured 25 mA
Power & Control Connector: Solder Pins
Connectors: SMA Female

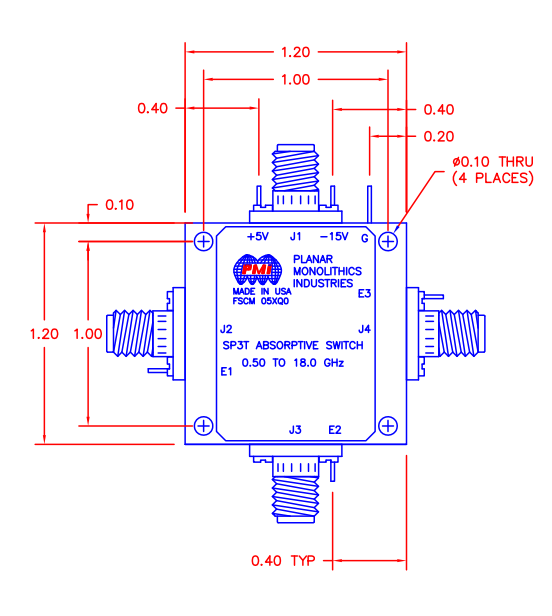

Size: 1.2" x 1.2" x 0.5"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 ºC to +125 ºC
