P1T-0R5G18G-55-R-SFF-PN * Active

Buy Now
Product Feature

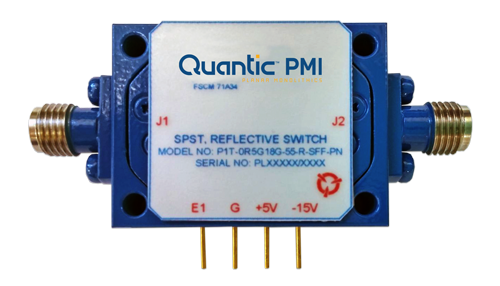

PMI Model No. P1T-0R5G18G-55-R-SFF-PN is a single pole, single throw, reflective switch designed to operate over the 0.5 to 18.0 GHz frequency range. This model is designed to maintain low insertion loss, high isolation and fast switching speed.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 0.5 GHz
Frequency Max: 18 GHz
Insertion Loss (Typ): 3 dB
Isolation (Typ): 55 dB
Reflective / Absorptive: Reflective
Switching Speed (Typ): 25 nsec
Configuration: SPST
Frequency: 0.5 to 18.0 GHz
Isolation: 55 dB min - Measured 62.43 dB
Insertion Loss: 3.0 dB typ - Measured 2.56 dB
VSWR In/Out: 2.0:1 - Measured 1.95:1
Input Power: +20 dBm CW max
Switching Speed: 100 ns max - Measured 36.6 ns
Control Signal: 1-Bit TTL Logic
Power Supply: +5 V @ 50 mA nominal - Measured 5 mA, -15 V @ 50 mA nominal - Measured 33 mA
Connectors: SMA(F)
Power & Control Connector: Solder Pins
Size: 1.2" x 0.9" x 0.35"
Finish: Painted Blue
Environmental Ratings:
Temperature (Operating): -40 to +85 ºC
Temperature (Storage): -55 ºC to +125 ºC
