LPF-DC1R5-SFF Preliminary

Product Feature

PMI Model No. LPF-DC1R5-SFF is a Low Pass Filter that operates over the frequency range of DC to 1.5 GHz. It has a maximum insertion loss of 1.0 dB and a maximum VSWR of 1.5:1. This model is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Passband: DC to 1500 MHz
Frequency Range (-1 dB Bandwidth): DC to 1500 MHz
Cut-Off Frequency: 1500 MHz
Insertion Loss: 1.0 dB max.
Input Power: 10 W max.
VSWR: 1.3:1 typ., 1.5:1 max.
Rejection @ 1.8 to 3.0 GHz: 46 dBc min.
Impedance: 50 Ohms
Connectors In/Out: SMA (F)

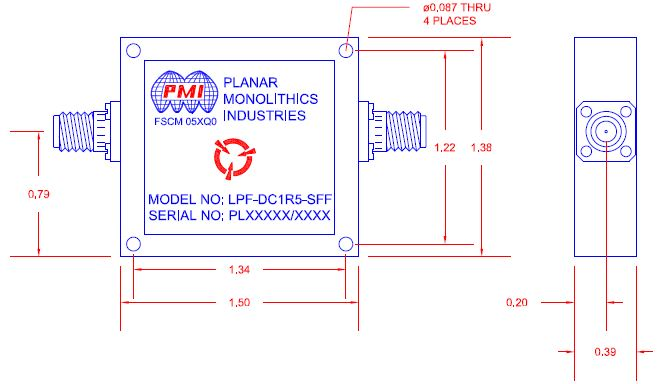

Size: 1.50" x 1.38" x 0.39"
Finish: Painted Blue
Environmental Ratings:
Temperature: -45°C to +85°C
Non-Operating: -65°C to +125°C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
