LP11G-12D7G-CD-SFF Active

Microstrip, Lowpass Filter

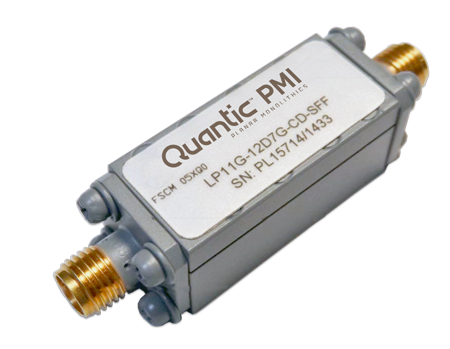

Quantic PMI Model No. LP11G-12D7G-CD-SFF is a microstrip, lowpass filter with SMA female connectors in and out. This unit offers very high Q with broadband performance in a silver-plated CNC machined housing; very low loss and is ideal for eliminating broadband harmonics.  Unit has SMA female connectors and size is 1.094" x 0.5" x 0.5".

Product Specifications

General Parameters:
Status: Active
Passband: DC to 10000 MHz
3dB Bandwidth: 11000 MHz
Cut-Off Frequency: 10000 MHz
Passband Insertion Loss: 1.0 dB Max
Rejection: 12700 to 17500 MHz
Phase Linearity: +/- 1° @ 4400 to 10000 MHz over every 10 MHz
Ripple: +/- 0.2 dB Max @ 4400 to 10000MHz over every 10 MHz
Average Power: 15 Watts
Impedance: 50 Ohms
Passband VSWR: 1.7:1
Connectors In/Out: SMA (F)
Size: 1.094" x 0.5" x 0.5"
Environmental Ratings:
Temperature: -55 °C to 85 °C
Non-Operating: -65 °C to 125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Salt Fog: MIL-STD-202F, Method 107D Cond A
Fungus: MIL-STD-810C, Method 508.2
Temperature Cycle: MIL-STD-202F, Method 107
