LNA-35-1G4G-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model LNA-35-1G4G-SFF is a low noise amplifier operating over the 1 to 4 GHz frequency range that offers a typical gain of 35 dB while maintaining a maximum noise figure of 1.2 dB. This compact model measures 1.25" x 1.25" x 0.563" with female SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 1 to 4
Frequency Min (GHz): 1
Frequency Max (GHz): 4
Gain (dB): 35 dB Typ
Gain Flatness: ±1.5 dB Typ
Noise Figure (dB): 1 dB Typ,
1.2 dB Max
OP1dB (dBm): 20 dBm Typ
VSWR In/Out: 3.0:1 / 1.7:1 Typ
DC Voltage (VDC): +9 to +15 V
DC Current (mA): 145 mA Typ
Reverse Isolation: -50 dB Typ
OIP3: 34 dBm Typ
Connectors: SMA female - removable

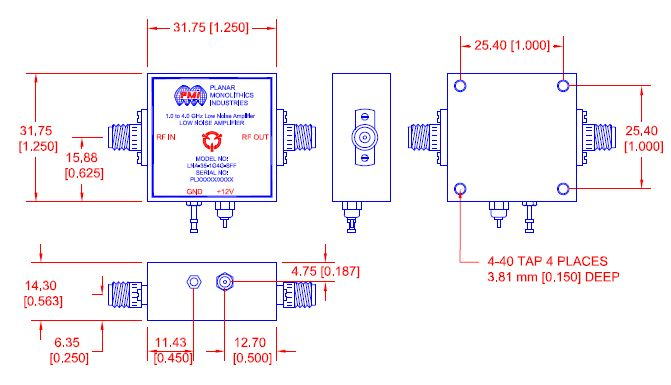

Size: 1.25" x 1.25" x 0.563"
31.75 mm x 31.75 mm x 14.30 mm
Finish: Blue Paint
DC Supply: +9 to +15 V
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -55 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
