LNA-2D0G8D0G-27D0-1D2-11-SFF Preliminary

Ultra Low Noise Amplifier

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/Capture_31472939_800.PNG
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/Capture_31472939_800.PNG
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PE2_XX_XXXXXX_XX_XX_12_SFF_85657117_800.png
Product Feature

Quantic PMI Model LNA-2D0G8D0G-27D0-1D2-11-SFF is a 2 to 8 GHz, Ultra Low Noise Amplifier which provides minimum gain of 24 dB while maintaining a maximum gain flatness of ±1 dB over the operating frequency with a maximum noise figure is 1.2 dB and offers a minimum OP1 dB of 10 dBm. The amplifier requires +11 V and the current draw is 100 mA maximum. Supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 2 to 8
Frequency Min (GHz): 2
Frequency Max (GHz): 8
Gain (dB): 24 dB Min,
30 dB Max
Gain (Measured): 24 dB Min, br>30 dB Max
Gain Flatness: ±1 dB Max
Noise Figure (dB): 1.2 dB Max
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +11 V
DC Current (mA): 100 mA Max
Connectors: SMA Female - removable

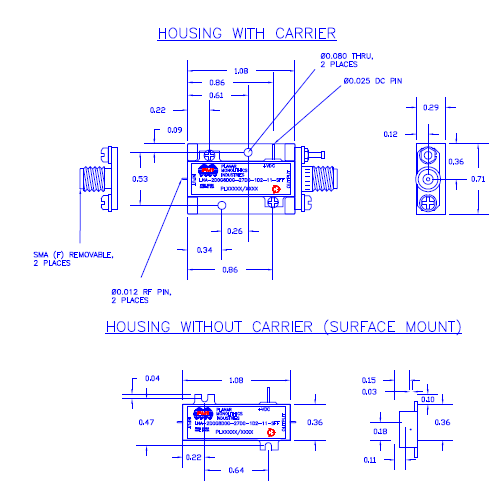

Housing: PE2
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating,
-55 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
