LNA-25-8R95G9R55G-6R0-33-12-SFF
Preliminary
Low Noise Amplifier
Quantic PMI Model LNA-25-8R95G9R55G-6R0-33-12-SFF is a narrowband amplifier that provides a minimum gain of 25 dB while maintaining a maximum gain flatness of 1.5 dB maximum over the operating frequency. The maximum noise figure is 6 dB and offers a minimum OP1dB of =33 dBm. The amplifier requires +12 VDC and a current draw of 3 amps maximum. This amplifier is supplied with nonremovable SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 8.95 to 9.55 |
|---|
| Frequency Min (GHz): | 8.95 |
|---|
| Frequency Max (GHz): | 9.55 |
|---|
| Gain (dB): | 25 dB Min |
|---|
| Gain Flatness (dB): | ±1.5 dB Max |
|---|
| Noise Figure (dB): | 4 dB Goal, 6 dB Max |
|---|
| VSWR In/Out: | 1.80:1 Max |
|---|
| OP1dB (dBm): | 33 dBm Min |
|---|
| DC Voltage: | +12 VDC |
|---|
| DC Current Draw: | 3 A Typ |
|---|
| Connectors: | SMA Female |
|---|

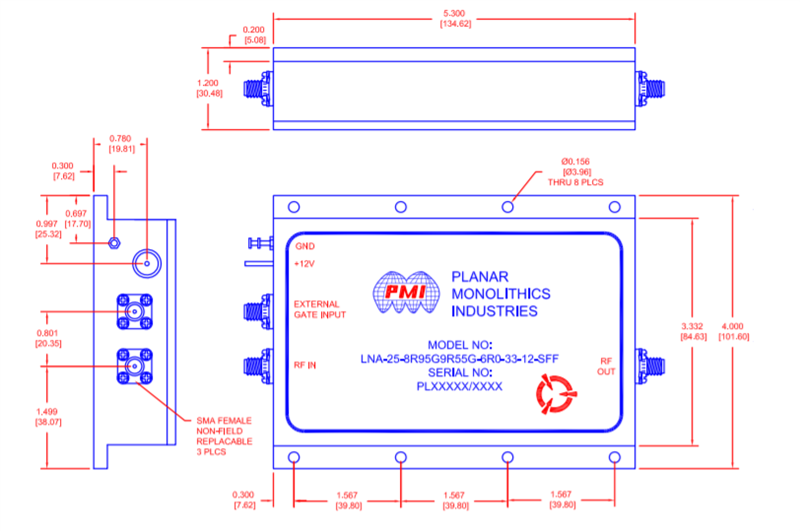

| Size: | 5.3" x 4.0" x 1.2" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to 85 ºC |
|---|
| Temperature (Non-Operating): | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
