LNA-20-0R4G0R5G-0R6-18-5-SFF Preliminary

Low Noise Amplifier

LNA-20-0R4G0R5G-0R6-18-5-SFF
Product Feature

Quantic PMI Model LNA-20-0R4G0R5G-0R6-18-5-SFF is a Low Noise Amplifier operating over the 0.4 to 0.5 GHz that offers a minimum gain of 20 dB while maintaining a maximum noise figure of 0.6 dB. This compact model is outfitted with SMA female connectors in housing measuring 1.25" x 1.25" x 0.563".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.4 to 0.5
Frequency Min (GHz): 0.4
Frequency Max (GHz): 0.5
Gain (dB): 20 dB Min
Noise Figure (dB): 0.6 dB Max
Input VSWR: 2.0:1
Output VSWR: 1.5:1 Max
OP1dB (dBm): 18 dBm Min
DC Voltage: +5 VDC
DC Current Draw: 120 mA Max
Connectors: SMA Female

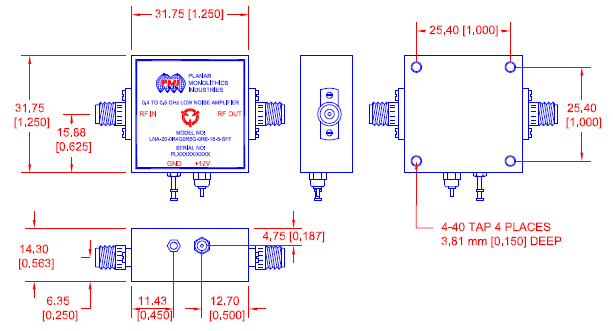

Size: 1.250" x 1.250" x 0.563"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to 85 ºC
Temperature (Non-Operating): -55 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
