LNA-11-520M580M-3D0-30-12-SFF Active

Low Noise Amplifier

Product Feature

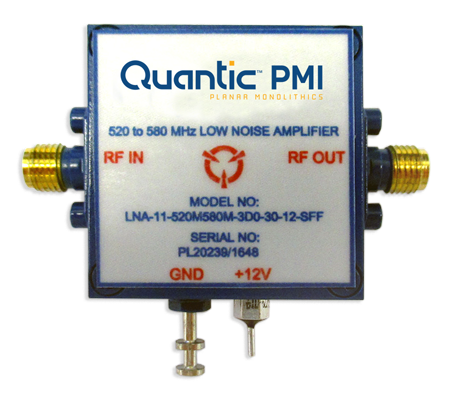

Quantic PMI Model LNA-11-520M580M-3D0-30-12-SFF is a low noise amplifier operating over the 520 to 580 MHz frequency range. This model offers a minimum gain of 11 dB while maintaining a maximum noise figure of 3 dB. This compact model measuring 1.25" x 1.25" x 0.563" is outfitted with female SMA connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.520 to 0.580
Frequency Min (GHz): 0.52
Frequency Max (GHz): 0.58
Gain (dB): 11 dB Min, 12 dB Typ
Gain (dB) - Measured: 11 dB Min, 12 dB Typ - Measured 16.87 dB
Noise Figure (dB): 4 dB Max
VSWR In/Out: 2.0:1 - Measured 1.58:1
OP1dB (dBm): 30 dBm Min
OIP3: 45 dBm Min - Measured 48.5 dBm
DC Voltage: +12 VDC
DC Current Draw: 400 mA Typ
Connectors: SMA Female
Size: 31.75 mm x 31.75 mm x 14.30 mm,
1.25" x 1.25" x 0.563"
Finish: Blue Epoxy, Mounting Surface Free of Paint
Environmental Ratings:
Temperature (Operating): -55 ºC to 85 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
