LNA-100K-6G-24-18-TTL Preliminary

Low Noise Amplifier

Product Feature
Additional Documents

Quantic PMI Model LNA-100K-6G-24-18-TTL is a Low Noise Amplifier that operates from 0.0001 to 6 GHz that offers a gain of 24 dB and a gain flatness of 2 dB P-P nominal with a noise figure of 5 dB, a Psat of 18 dBm and has a TTL output to indicate when the amplifier is in saturation. Package size is 1.2" x 0.8" x 0.37" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.0001 to 6
Frequency Min (GHz): 0.0001
Frequency Max (GHz): 6
Gain (dB): 24 dB Nom
Gain Flatness: 2 dB P-P Nom
Noise Figure (dB): 5 dB Max
Psat (dBm): 18 dBm Nom
VSWR In/Out: 2.0:1 max.
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 150 mA Nom
Connectors: SMA Female - removable

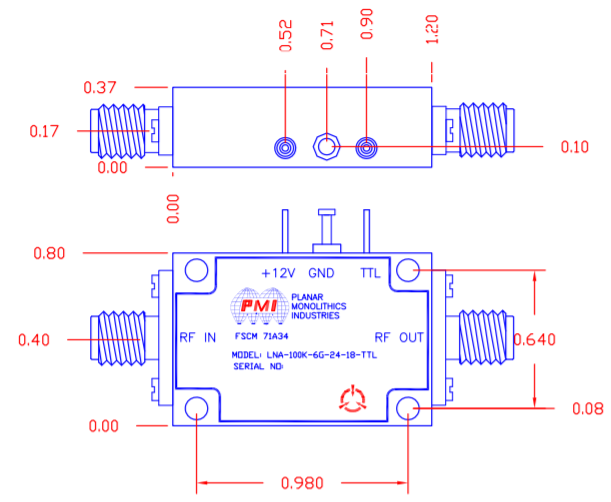

Size: 1.2" x 0.8" x 0.37"
Environmental Ratings:
Temperature: -20 ºC to +70 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
