General Parameters: |
Status: | Preliminary |
Frequency: | 0.08 to 0.6 GHz |
Frequency Min: | 0.08 GHz |
Frequency Max: | 0.6 GHz |
Insertion Loss: | 1.2 dB max. |
Input/Output VSWR: | 1.5:1 max. |
Peak Power: | 5 Watts CW @ +25ºC |
Input Power: | 5 Watts CW @ +25ºC (Peak) |
Leakage Power: | +10 dBm max. |
Recovery Time: | 1 us max. |
Connectors In/Out: | 2.92 mm (F) Input and 2.92 mm (M) Output (Compatible with SMA Connectors) |

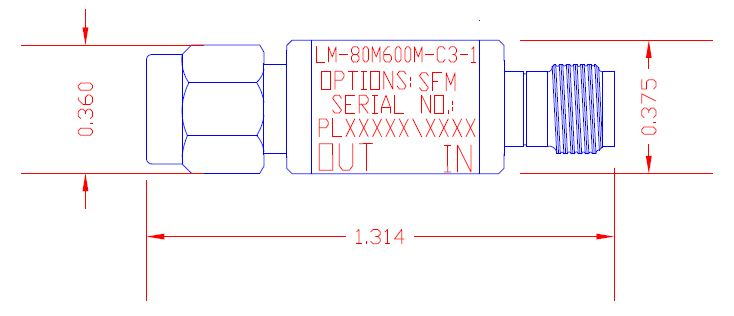

Size: | 1.314 (L) x 0.375 (Diameter) |
Weight: | 1.0 oz. Maximum |
Environmental Ratings: |
Operating Temperature: | -55ºC to +125 ºC |
Non-Operating Temperature: | -65 ºC to +125 ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Vibration: | MIL-STD-202F, Method 204B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
