LM-618-10-1W-SHS-1-F Preliminary

Product Feature

PMI Model No. LM-618-10-1W-SHS-1-F is a high speed, high power limiter that operates from 6.0 to 18.0 GHz. This limiter handles 100 Watts Peak Power with a pulse width of 1usec. The insertion loss is only 1.5 dB typically and has a VSWR of 2.0:1 maximum. This limiter is supplied in a small housing measuring only 0.5" x 0.5" x 0.22".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 6.0 to 18.0 GHz
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Insertion Loss (dB): 2.0 max., 1.5 typ.
Input/Output VSWR: 2.0:1 max
Peak Power: 100 Watts
Input Power: 1 W CW, 100 W Peak, 1 us Pulse, 0.1% Duty Cycle Derated to 20% at 125°C
RF Leakage (dBm): +14 Max, +10 Typ
Pulse width: 1 µs
P1dB Limiting Threshold (dBm): +10 Typ
Connectors In/Out: SMA (F)

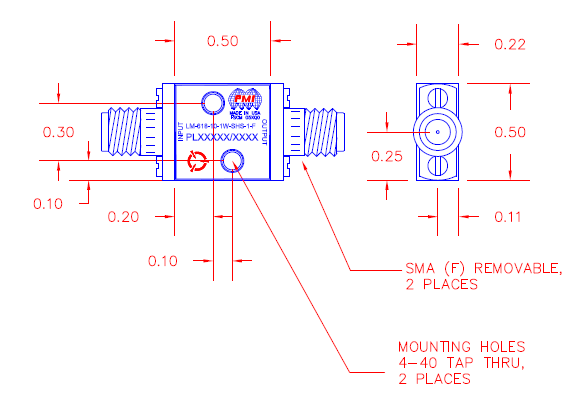

Size: 0.5" x 0.5" x 0.22"
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
