| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.4 to 4 |
|---|
| Frequency Min (GHz): | 0.4 |
|---|
| Frequency Max (GHz): | 4 |
|---|
| Insertion Loss (dB): | 1.2 Typ |
|---|
| Input/Output VSWR: | 1.5:1 Typ |
|---|
| Peak Power: | 220 Watts, 10% duty cycle, 1usec PW |
|---|
| Average Power: | 20 Watts CW |
|---|
| Input Power: | 20 W CW |
|---|
| RF Leakage (dBm): | +13 typ |
|---|
| Recovery Time: | 10 ns typ |
|---|
| Connectors In/Out: | 2.92mm (M) Input and 2.92mm (F) Output |
|---|

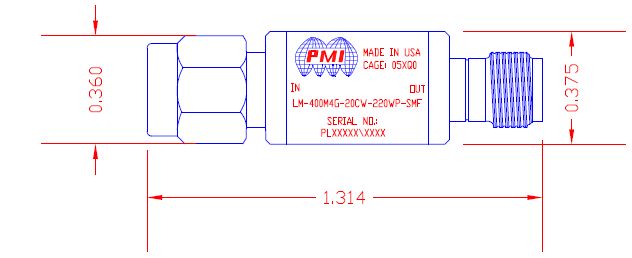

| Size: | 1.314 (Length) x .375 (Diameter) |
|---|
| Weight: | <1 oz. typ |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
