LM-30M3G-C3-1 Active

High Power Limiter

Product Feature

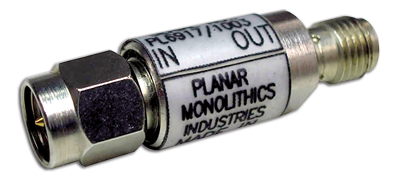

Quantic PMI Model LM-30M3G-C3-1 is a high power limiter that operates from 30 MHz to 3.0 GHz. This limiter can handle input power levels up to 5 W CW and provides a maximum leakage of +10 dBm. The insertion loss is 1.2 dB maximum with a maximum VSWR of 1.5:1. The recovery time is less than 1 µs. This limiter is offered in a coaxial package measuring only 1.314" x 0.375" diameter.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.03 to 3.0 GHz
Frequency Min (GHz): 0.03
Frequency Max (GHz): 3
Insertion Loss (dB): 1.2 Max
Input/Output VSWR: 1.5:1 Max
Peak Power: 5 Watts CW
Input Power: 5 W CW @ +25°C (Peak)
RF Leakage (dBm): +10 Max
Recovery Time: 1 µs max
Connectors In/Out: 2.92mm (M) Input and 2.92mm (F) Output
Size: 1.314 (L) x 0.375 (Diameter)
Finish: ALBALOY PLATED
Weight: 1.0 oz. Max
Environmental Ratings:
Operating Temperature: -55 ºC to +125 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
