LM-30M3G-1-PE2-HERM-292MF Preliminary

Limiter

LM-30M3G-1-PE2-HERM-292MF
Product Feature

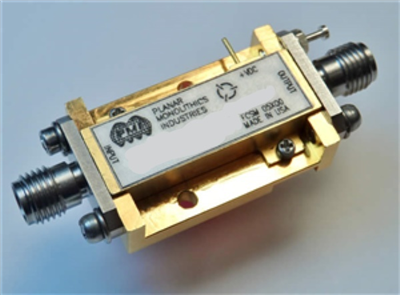

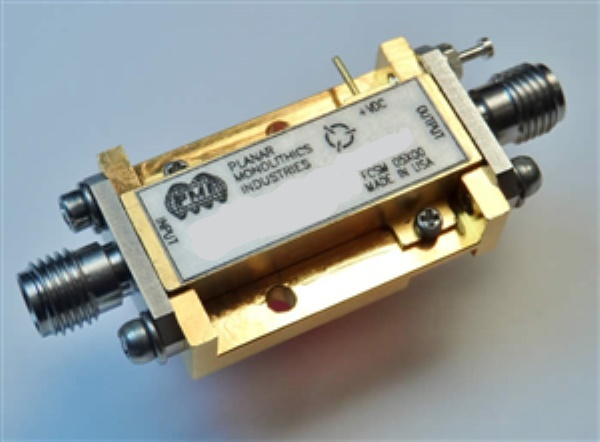

Quantic PMI Model LM-30M3G-1-PE2-HERM-292MF is a high power limiter, supplied in our standard PE2 housing, that works from 30 MHz to 3.0 GHz. This limiter handles 5 Watts CW with a leakage power of +10 dBm typical.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.03 to 3
Frequency Min (GHz): 0.03
Frequency Max (GHz): 3
Insertion Loss (dB): 1.2 dB Max
Input/Output VSWR: 1.5:1 Max
Peak Power: 5 W CW @ +25°C
Input Power: 5 W CW @ +25°C
RF Leakage (dBm): +10 Typ
Recovery Time: 1 us Max
Connectors In/Out: 2.92 mm (M/F)
Weight: <1 oz. Typ
DC Blocking: Input and Output
Sealing: Hermetic
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55°C to +85°C
Non-Operating Temperature: -65°C to +125°C
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. B
