LM-2R83R2-316W-20W-PIN
Preliminary
Limiter
Quantic PMI Model LM-2R83R2-316W-20W-PIN is a limiter that operates over the frequency range of 2.8 to 3.2 GHz. This model is outfitted with pins.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 2.8 to 3.2 |
|---|
| Frequency Min (GHz): | 2.8 |
|---|
| Frequency Max (GHz): | 3.2 |
|---|
| Insertion Loss (dB): | 0.6 dB Max |
|---|
| Input/Output VSWR: | 1.5:1 Max |
|---|
| Spike Leakage: | 250 mW (+24 dBm) Max |
|---|
| RF Leakage (dBm): | +23 Max |
|---|
| Recovery Time: | 100 ns |
|---|

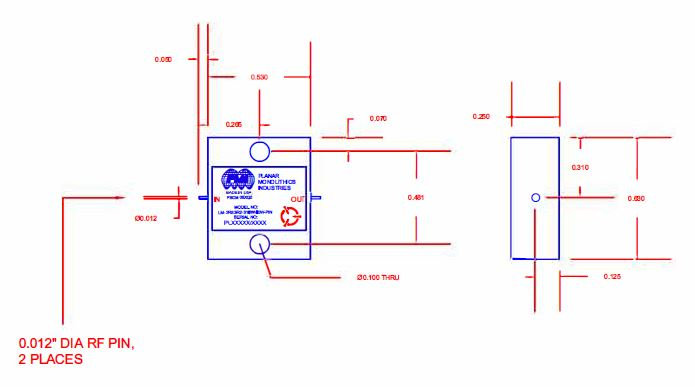

| Connectors In/Out: | 0.012" DIA RF PIN |
|---|
| Finish: | GOLD PLATED OVER NICKEL |
|---|
| Spike Energy: | 0.1 ERG Max |
|---|
| Incident RF Pulse Pattern 1: | 316 WATTS (+55 dBm) Max
PULSE WIDTH Sus Max
DUTY CYCLE 1 % Max
AVERAGE POWER 3.2W (+35dBm) Max |
|---|
| Incident RF Pulse Pattern 2: | 20 WATTS (+43 dBm) M
RANGE OF PULSE WIDTH 100ns TO 130us
DUTY CYCLE 13% Max
AVERAGE POWER 2.0W (+33dBm) Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C TO +90°C |
|---|
| Non-Operating Temperature: | -40 °C TO +10 °C |
|---|
| Vibration: | SHALL OPERATE AT FULL SPECIFICATION WITH VIBRATION IN ALL THREE PRINCIPAL AXES WITH
i) AMPLITUDE DISPLACEMENT OF ±1 mm AT A RATE BETWEEN 2.0 TO 13.2 Hz
ii) ACCELERATION OF 7 m/s2 AT A RATE OF 13.2 TO 100 Hz |
|---|
| Relative Humidity: | UP TO 95% AT +40 °C |
|---|
