LM-26G40G-14-20W-292FF Active

High-Power Limiter

Product Feature

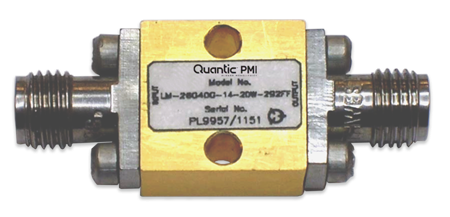

Quantic Model LM-26G40G-14-20W-292FF is a high-power limiter capable of withstanding an input power level of 20 Watts, 440 to 670 ns Pulse Width, PRF 600 to 900 kHz, 40% Duty Cycle. This model operates in the 26.5 to 40 GHz frequency range. The insertion loss is 4.0 dB maximum, VSWR of 2.0:1 and 250 ns response time packaged in a small 0.50" X 0.50" X 0.22" housing.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 26.5 to 40 GHz
Frequency Min (GHz): 26.5
Frequency Max (GHz): 40
Insertion Loss (dB): 4.0 Max
Input/Output VSWR: 2.0:1
Peak Power: 20 Watts (43 dBm)
Input Power: 20 W (Peak)
RF Leakage (dBm): +14 Typ
Recovery Time: 250 ns max.
Pulse width: 440 to 670 ns
PRF: 600 to 900 KHz
Duty Cycle: 0.4%
Connectors In/Out: 2.92 mm (F) Removable
Size: 0.50" x 0.50" x 0.22"
Environmental Ratings:
Operating Temperature: -40 ºC to +60 ºC
Non-Operating Temperature: -50 ºC to +70 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
