| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 2 dB Max |
|---|
| Input/Output VSWR: | 2.0:1 Max |
|---|
| Peak Power: | 200 Watts, 1µs and 0.1% Duty Cycle |
|---|
| Average Power: | 1 Watt CW |
|---|
| Input Power: | 1 W CW |
|---|
| RF Leakage (dBm): | +14 Max @ 1 W CW Input |
|---|
| Recovery Time: | 100 ns Max @ Pin = 27 dBm |
|---|
| P1dB Limiting Threshold (dBm): | +6 Typ |
|---|
| Connectors In/Out: | SMA Female (Input and Output) |
|---|

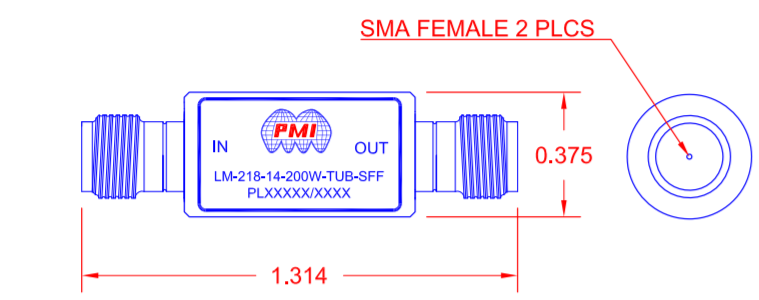

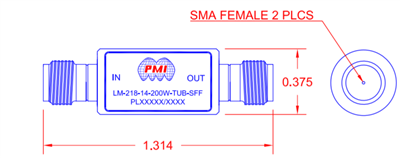

| Size: | 1.314" x Ø0.375" |
|---|
| Weight: | 1.5 oz. Typ |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +125 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
