LM-218-10-300PW-SHS-2 Active

Limiter

LM-218-10-300PW-SHS-2
Product Feature
Additional Documents

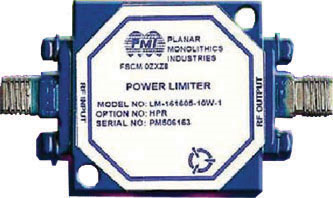

Quantic PMI Model LM-218-10-300PW-SHS-2 Option F is a High Power Limiter That Works From 2GHz to 18GHz That Handles 300 Watts Peak Power With a Pulse Width of 20 ns.

Additional Product Information under, http://www.planarmonolithics.com/products/LM-218-10-300PW-SHS-2-F.htm

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Insertion Loss (dB): 2.5 dB Max
Input/Output VSWR: 2.0:1
Peak Power: 300 Watts
Average Power: +10 dBm
Input Power: +10 dBm
Pulse width: 20 nSec
Connectors In/Out: SMA Female (Input and Output)
Size: 1.00 X 1.00 X 0.500 (H)
Weight: 1.5 oz. Maximum
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
