LM-20M18G-100W-15DBM-NFM Active

High-Power Limiter

LM-20M18G-100W-15DBM-NFM
Product Feature

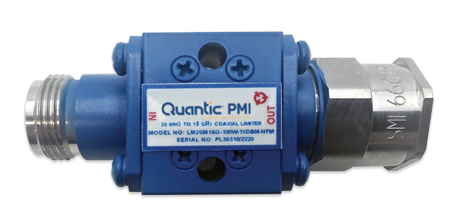

Quantic PMI Model LM-20M18G-100W-15DBM-NFM is a High Power limiter that operates in the frequency range of 0.02 to 18 GHz. This limiter can handle 100 W CW for all temperatures (-55 to +85 °C) and 1 kW peak (1% duty cycle, 1 µs maximum pulse width) energy input and provides maximum leakage of 17 dBm. This model has a low insertion loss of 2 dB and a typical recovery time of 100 ns. Model has a 1.0" x 0.8" SQ compact housing with N-Type connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.02 to 18
Frequency Min (GHz): 0.02
Frequency Max (GHz): 18
Insertion Loss (dB): 2 dB goal, 2.5 dB Max
Input/Output VSWR: 2.0:1 Max @ -10 dBm Input Power
Input Power: 100 W CW Max
All Temperatures (-55 °C to +85 °C)
1 kW Peak (1% Duty Cycle, 1 µs Pulse Width)
100 W Peak (10% Duty Cycle, 10 µs Pulse Width)
RF Leakage (dBm): 17 Max @ 100 W CW
Recovery Time: 100 ns Typ
P1dB Limiting Threshold (dBm): 5 Min
Impedance: 50 Ohm
Connectors In/Out: Type N Female / Male
Size: 1.00" x 0.80" SQ
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -62 °C to +95 °C
Humidity: 100%
Vibration: 0.1 inch pp or ± 10G, 5 ~ 500 Hz
(Figure 2, Sheet 1 of 3, Curve IV)
Shock: 15G, 11 ± 1 ms
Altitude: 70, 000 ft
