LM-1G2G-4CW-1KWP-SMF-OPT2G4G Active

RF Limiter

LM-1G2G-4CW-1KWP-SMF-OPT2G4G
Product Feature

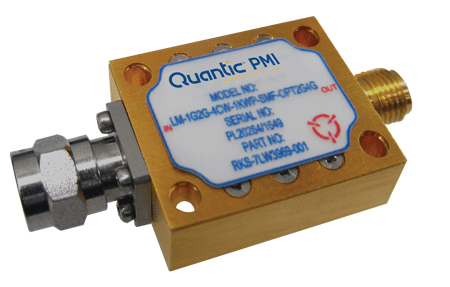

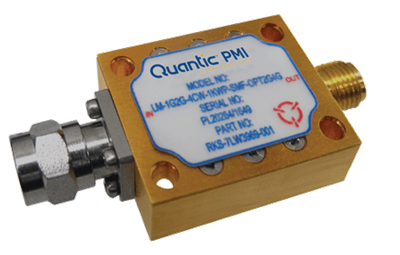

Quantic PMI Model LM-1G2G-4CW-1KWP-SMF-OPT2G4G is an RF Limiter that operates over the 2 to 4 GHz frequency range. This limiter can handle 40 W CW input power and provides a maximum leakage of +30 dBm (1 W). This model has a low insertion loss of 1.2 dB. Package size is 1.00" x 0.75" x 0.38" with SMA male / female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 4
Frequency Min (GHz): 2
Frequency Max (GHz): 4
Insertion Loss (dB): 1.2 dB Max
Input/Output VSWR: 2.0:1 Max
Input Power: 40 W CW (46 dBm)
RF Leakage (dBm): 30
P1dB Limiting Threshold (dBm): 45 (30% Duty Cycle)
Impedance: 50 Ohm
Connectors In/Out: SMA (M/F)
Size: 1.00" x 0.75" x 0.38"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +95 ºC
Stabilization Bake: MIL-STD-883, Method 1008 Cond. B
Thermal Cycle: MIL-STD-883, Method 1010 Cond. B
Vibration: 0.1 inch pp or ±10G, 5 - 500 Hz (MIL-E-5400R)
Shock: 15 G, 11 ±1 ms
Relative Humidity: 1
Altitude: 70, 000 ft
